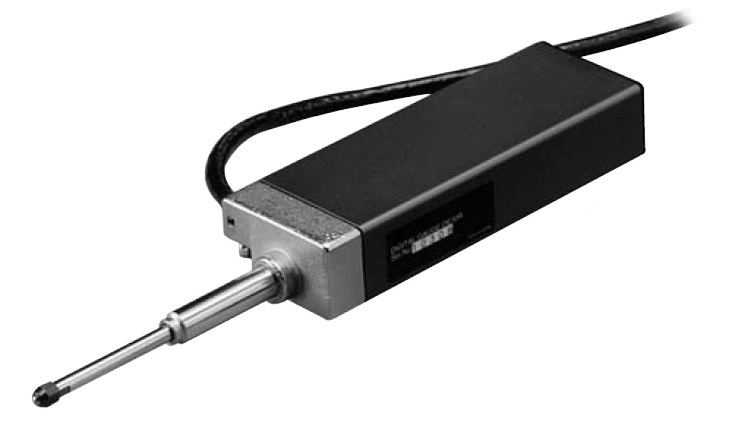

DE30BR
SZ70-1
LY71
LY72
LH70/71
LG20
SZ70-2 LT30
MG10/20/30
LY51
LY52

Resolution:

0,1 μm

Measuring length:

30 mm

Accuracy:

1 μm p-p

Installation diameter:

8 mm

Protection class:

IP64 (not including interpolation box and connectors)

Cable length:

2 m

Discontinued:

- March 2013 -

Advice:

DK830S with adapter - Please contact Magnescale for replacement

Product code

Type

Description

97928115

SZ70-1

Adaptor

97928726

SZ70-2

Adaptor

97922067

DZ301

Bellow set for DE30BR/DL330BR

97922028

DZ173

Air release for DE12BR/30BR and U Series
