DG

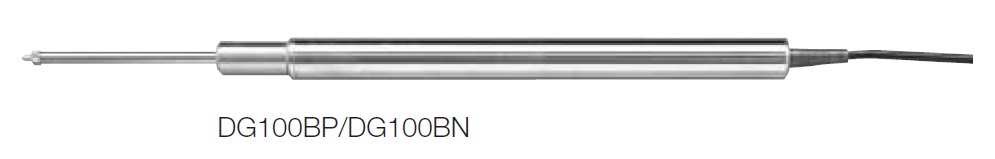

DG100 Series

Data sheet

Drawing

Manual DG100

Accessories

Successor

- Discontinued -

Resolution:

0,5 μm

Measuring length:

100 mm

Accuracy:

4 μm p-p

Installation diameter:

20 mm

Protection class:

IP64 (not including interpolation box and connectors)

Cable length:

5 m

Discontinued:

- May 2013 -

Advice:

DK with adapter - Please contact Magnescale for replacement

Gauge

Extension cable / Adapter cable

Counter / Interface

MG10/20/30
DG100
LH70/71
LY71
DZ51
SZ70-1
LY72
LG20
LT20A
DZ51
SZ70-2 LT30

Product code

Type

Description

97967101

DZ51

Adaptor

97928115

SZ70-1

Adaptor

97928726

SZ70-2

Adaptor
