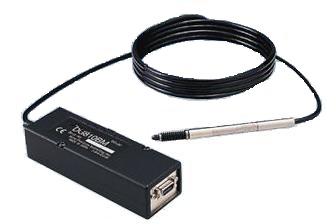

DG-E - Series with TTL line driver output signal (11-28 V DC)

Gauge

Connector

Counter

DG-E Connector Set 7 external Device

DG-M - Series with TTL line driver output signal (5 V DC +/- 5%)

Gauge

Connector

Counter

DG-M
Connector Set 7
external Device

Product code

Type

Description

50225975

Connector Set 7

Connector for DG M/E Type

Resolution:

0,5 μm; 1,0 μm; 2,0 μm; 5,0 μm; 10,0 μm

Measuring length:

5,2 mm - 205 mm

Output signal:

A/B quadratur

Installation diameter:

8 mm and 20 mm

Protection class:

IP64 (not including interpolation box and connectors)

Power supply:

+5 V DC (DG-M); +11 V - 28 V DC (DG-E)

Discontinued:

- May 2013 -

Advice:

DK with adapter - Please contact Magnescale for replacement
