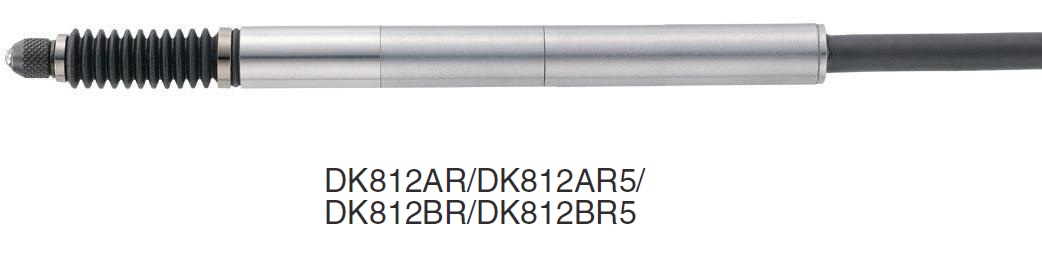

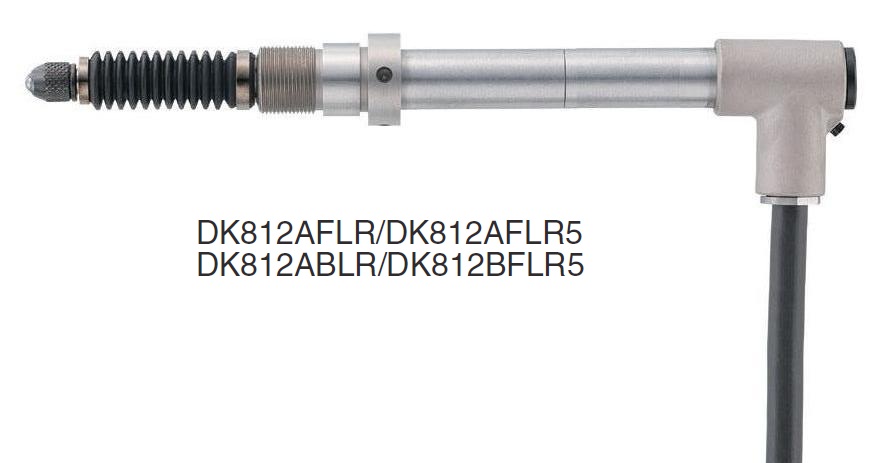

DK812A/B Series

Data sheet

Drawing

Manual DK812AF/BF

Manual DK812AR/AL/BR/BL

Manual DK812AVR/BVR

Drawing Airlifter Fitting

Output signal

Accessories

- Discontinued -

Resolution:

0,1 μm and 0,5 μm

Measuring length:

12 mm

Accuracy:

1 μm p-p and 1,5 μm p-p

Installation diameter:

8 mm

Protection class:

IP66 (not including interpolation box and connectors)

Cable length:

2,5 m

Discontinued:

- May 2013 -

Advice:

Successor: DK812S Series

Gauge

Extension cable / Adapter cable

Counter / Interface

MG10/20/30
DK812A/B CK-T**
MG40
LH70/71
LY71
CE29
LY72
LG20
LT30
CE22 open end

Product code

Type

Description

97924996

CK-T12

Extension cable (1 m)

97924997

CK-T13

Extension cable (3 m)

97924998

CK-T14

Extension cable (5 m)

97924999

CK-T15

Extension cable (10 m)

97930000

CK-T16

Extension cable (15 m)

97928116

CE22-01

Extension cable with open end (1 m)

97928117

CE22-03

Extension cable with open end (3 m)

97928118

CE22-05

Extension cable with open end (5 m)

97928119

CE22-10

Extension cable with open end (10 m)

97928697

CE29-01

Adapter cable (1 m)

97928698

CE29-03

Adapter cable (3 m)

97928699

CE29-05

Adapter cable (5 m)

97928700

CE29-10

Adapter cable (10 m)

To be ordered from GeBoTech

Fitting-D01 Set (Airlifter Fitting for Vacuum)
