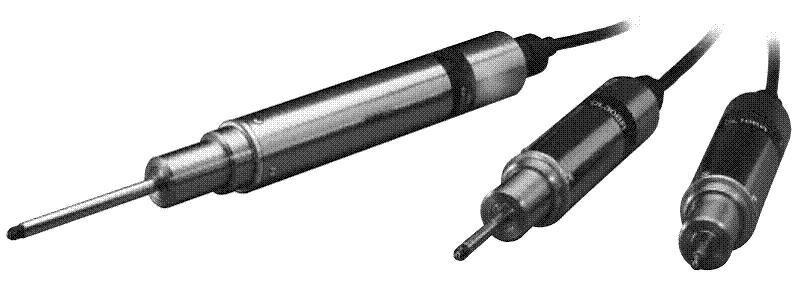

DL-BR Series

Data sheet

Drawing

Manual DL310B

Accessories

- Discontinued -

Resolution:

5 μm

Measuring length:

10 mm; 30 mm; 60 mm

Accuracy:

+/- 2,5 μm for 10 mm & 30 mm; +/- 5 μm for 60 mm

Installation diameter:

20 mm

Protection class:

IP64

Cable length:

5 m

Output signal:

A/B phase by NPN open collector (12 VDC, 10 mA or less)

Discontinued:

- September 2007 -

Advice:



Gauge

Extension cable / Adapter cable

Counter / Interface

SZ70-2
DL-BR DZ51 LT30
LY51
DZ51
LY52
LY71
SZ70-1
DZ51
LY72
