DZ

DZ501 Series

Drawing

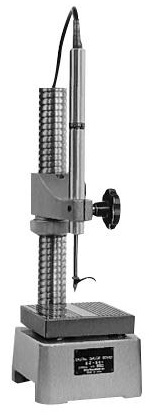

DZ501:

Gauging stand

Surface plate material:

alumina ceramic

Surface plate flatness:

2 μm

Max. work piece height:

190 mm

Gauge mounting hole:

20 mm

Mass:

13,0 kg

Discontinued:



Advice:



Product code

Type

Description

97922010

DZ501

Digital gauging stand for U60B / DG10B to DG100B / DE30BR / DK10 to DK100
