DZ

DZ521 Series

Drawing

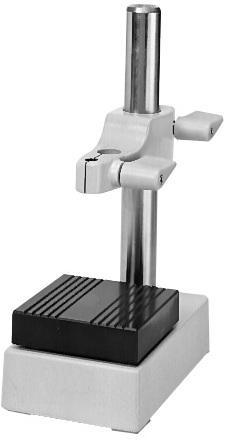

DZ521:

Gauging stand

Surface plate material:

alumina ceramic (dark brown)

Surface plate flatness:

2 μm

Max. work piece height:

105 mm

Gauge mounting hole:

8 mm

Mass:

3,8 kg

Discontinued:



Advice:



Product code

Type

Description

97922025

DZ521

Digital gauging stand for DG805BL / DG805B / DG810BL / DE12BR / U-Series
