MSS

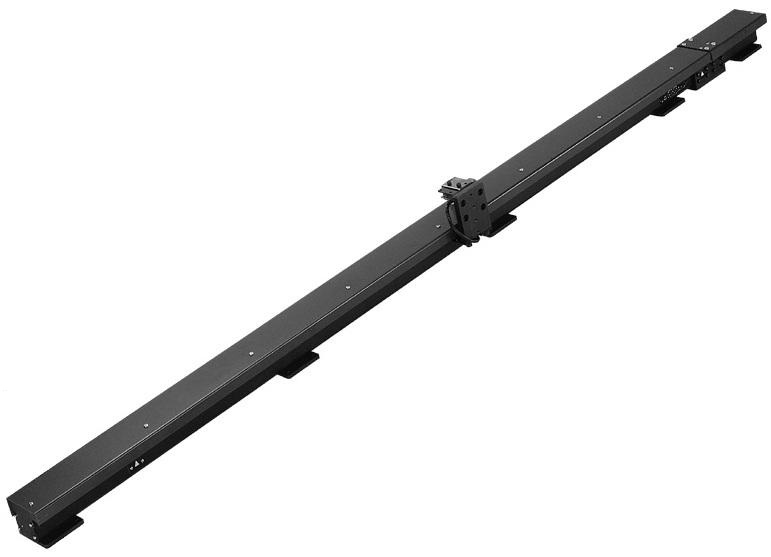

MSS-101 Series

Data sheet

Drawing

Manual MSS-101

Resolution:

0,5 μm

Measuring length:

3.200 mm - 30.000 mm

Accuracy:

(5+5L/1000) μm

Protection class:

IP54

Reading head:

HA-101 or HA-101V

Discontinued:



Advice:



Product code

Resolution: 0,5 μm

97910016

MSS-101-3200

3.200 mm Scale

97910020

MSS-101-3800

3.800 mm Scale

97910021

MSS-101-4000

4.000 mm Scale

97910025

MSS-101-4600

4.600 mm Scale

97910030

MSS-101-5500

5.500 mm Scale

97910546

MSS-101-5600

5.600 mm Scale

97910033

MSS-101-6500

6.500 mm Scale

97910039

MSS-101-9500

9.500 mm Scale

97910040

MSS-101-10000

10.000 mm Scale

97910042

MSS-101-11000

11.000 mm Scale

97914000

HA-101

Reading Head

97953901

CE07-03C

cable (3 m); armored

97953902

CE07-05C

cable (5 m); armored

97953903

CE07-10C

cable (10 m); armored

97953904

CE07-15C

cable (15 m); armored

97967301

SZ51-MS01

Adaptor

97928115

SZ70-1

Adaptor

97921075

MK7-03C

cable (3 m) (MSS-101 / SR801 to MD20B)

97921076

MK7-05C

cable (5 m) (MSS-101 / SR801 to MD20B)

97921077

MK7-10C

cable (10 m) (MSS-101 / SR801 to MD20B)

97921078

MK7-15C

cable (15 m) (MSS-101 / SR801 to MD20B)
