PL

PL81/82 Series

Data sheet

Drawing

Manual PL81/82

Manual PL81/82 Supplement

Keitoku

Scale

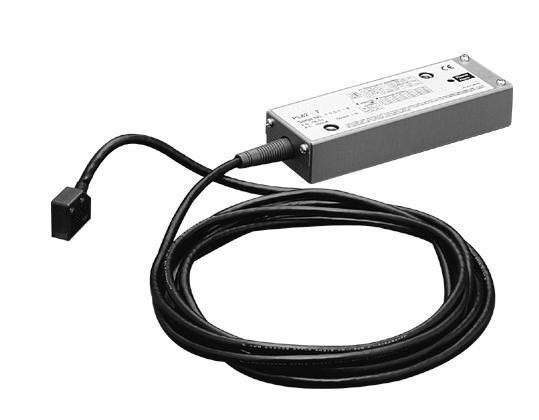

Reading Head

Output signal

PL81 -
open collector
SL110/130 PL81/82
PL82 - A/B

Accuracy:

+/- (25+5L/100) μm

Output signal PL81:

A/B phase signal by open collector

Output signal PL82:

A/B phase signal by differential line driver

Max. response speed:

300 m/min

Protection class:

IP67

Discontinued:



Advice:



Product code

Reading head

Description

97969801

PL81-3

Reading head with 3 m cable

97969802

PL81-5

Reading head with 5 m cable

97969803

PL81-7

Reading head with 7 m cable

97969804

PL81-A

Reading head with 10 m cable

97969805

PL81-B

Reading head with 15 m cable

97969901

PL82-3

Reading head with 3 m cable

97969902

PL82-5

Reading head with 5 m cable

97969903

PL82-7

Reading head with 7 m cable

97969904

PL82-A

Reading head with 10 m cable

97969905

PL82-B

Reading head with 15 m cable
