SJ

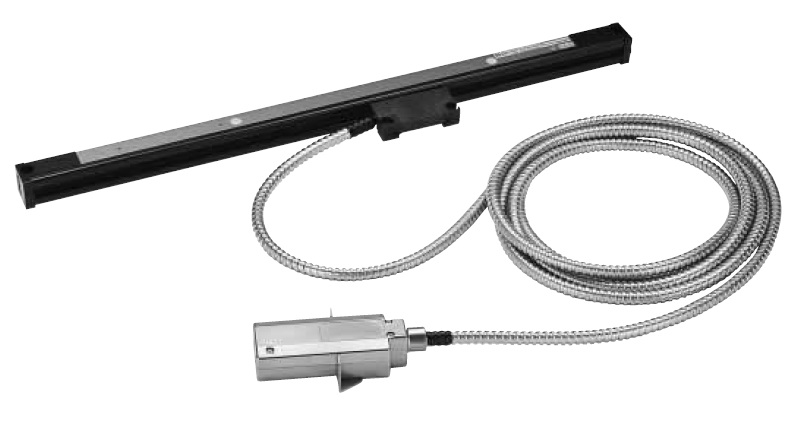

SJ700 Series

Data sheet

Drawing

Manual SJ700

Successor

- Discontinued -

Scale

Adaptor

Counter

SZ70-1
LH70/71
SJ700
LY71
LY72
LG20
LH71A-3T01
LG10
LH51/52
LH54-3
LH61
LY51
LY52

Resolution:

5 μm

Measuring length:

150 mm - 1.600 mm

Accuracy:

+/- 10 μm (ML 150 mm - 1.250 mm)                                     +/- 15 μm (ML 1.400 mm - 1.600 mm)

Protection class:

IP54

Cable length:

3 m and 5 m

Discontinued:

- June 2008 -

Advice:

Connector to Counter and output signal changed with the successor
