SR

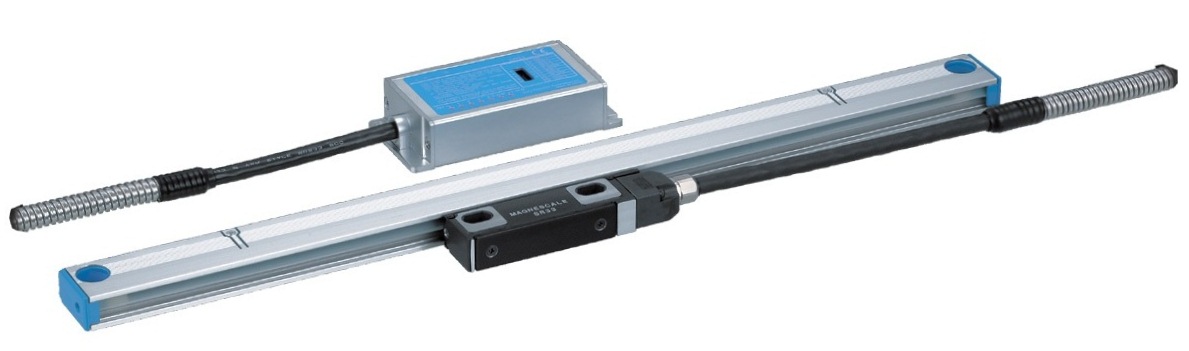

SR34 Series

Data sheet

Drawing

Manual SR34 Installation

Manual SR34 Operation EN

Manual SR34 Operation DE

Successor

- Discontinued -

Resolution:

0,1 μm

Measuring length:

70 mm - 2.040 mm

Accuracy:

+/- 5 μm

Output signal:

A/B quadrature

Protection class:

IP54 (Air purge not included), IP65 (Air purge included)

Cable length:

max. 30 m

Discontinued:

- December 2007 -

Advice:

Measures and connectors changed to the successor
