MD

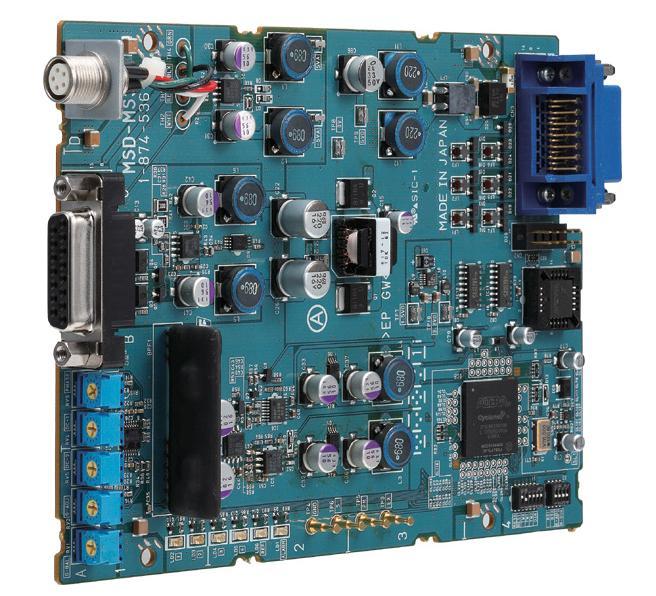

MD10A Series

Data sheet

Drawing

Manual MD10A

Resolution:

0,5 μm / 1,0 μm / 2,0 μm / 4,0 μm selectable

Output signal:

A/B quadrature output by line driver (EIA-422 compliance)

Zero point signal:

Z phase output

Reset:

external input

Mass:

300 g

Discontinued:



Advice:



Magnescale

Cable

Interpolator

Output signal

CE11 MD10A
SR127
A/B quardrature
SR128
SR118
AK2
SR721-SP
MK7
SR801/R
MSS-101
MK7

Product code

Type

Description

97928643

MD10A

Interpolator

97921075

MK7-03C

cable (3 m)

97921076

MK7-05C

cable (5 m)

97921077

MK7-10C

cable (10 m)

97921078

MK7-15C

cable (15 m)

97921085

AK2-10C

Adaptor cable (10 m) with Hirose 7P / Sub-D

97991267

AK2-LA03N

Adaptor cable (3 m) with Hirose 7P / Sub-D

97968101

CE11-03C

cable (3 m) amored

97968102

CE11-05C

cable (5 m) amored

97968103

CE11-10C

cable (10 m) amored

97968104

CE11-15C

cable (15 m) amored
