MJ

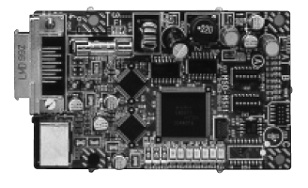

MJ620 Series

Data sheet

Drawing

Manual MJ620

Number of divisions:

1,0 μm / 2,0 μm / 5,0 μm / 10,0 μm / 20,0 μm / 25,0 μm

Output signal:

Line driver RS422

Output:

A/B quadrature; Z-phase; alarms

Discontinued:



Advice:



Digiruler

Reading Head

Cable

Interpolator

Output signal

PL101 CE08
SL700 MJ620
CK-T

Product code

Type

Description

97977490

MJ620

Detector for A/B/Z quadrature output / Division 35 to 800

97977244

MZ2

Output connector for MJ100/110/620

97977502

MZ5

Housing for MJ620

97924996

CK-T12

Extension cable (1 m)

97924997

CK-T13

Extension cable (3 m)

97924998

CK-T14

Extension cable (5 m)

97924999

CK-T15

Extension cable (10 m)

97930000

CK-T16

Extension cable (15 m)

97958805

CE08-1

Extension cable (1 m)

97958801

CE08-3

Extension cable (3 m)

97958802

CE08-5

Extension cable (5 m)

97958803

CE08-10

Extension cable (10 m)

97958804

CE08-15

Extension cable (15 m)

A/B/Z quardrature
