PL

PL101 Series

Data sheet

Drawing

Manual PL101

PL101-N:

IP50 (SL700)

PL101-R:

IP50; Reference point detection (SL700/710/720/730)

PL101-RH:

IP67; Reference point detection (SL700/710/720/730)

Discontinued:



Advice:



Scale

Reading Head

Cable

Interpolator

Output signal

SL700 PL101 CE08-** MJ632 A/B quadrature
CK-T**
MJ832 Mitsubishi
MJ842 Yaskawa
MJ852 Panasonic

Scale

Reading Head

Cable

Interpolator

Output signal

SL700 PL101 CE08-** MJ500/600/700 A/B quadrature
CK-T**
MJ620
MJ820/821 Fanuc CNCi
MJ830/831 Mitsubishi MR-J2
1 Vp-p

Product code

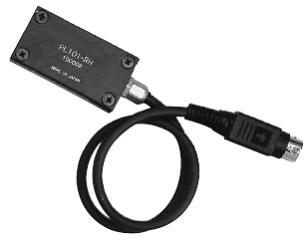

Reading Head PL101 for Scale SL700 - Series; Outputsignal 1 Vp-p

97977485

PL101-N

no Ref. mark detection; IP50; 0.3 m cable

97977489

PL101-R

with Ref. mark detection; IP50; 0,3 m cable

97977488

PL101-RH

with Ref. mark detection; IP67; 3 m cable

Product code

Extension cables for Reading Head PL101 - Series

97924996

CK-T12

cable (1 m)

97924997

CK-T13

cable (3 m)

97924998

CK-T14

cable (5 m)

97924999

CK-T15

cable (10 m)

97930000

CK-T16

cable (15 m)

97931237

CK-T90

cable (25 m) with open end

97958805

CE08-01

cable (1 m)

97958801

CE08-03

cable (3 m)

97958802

CE08-05

cable (5 m)

97958803

CE08-10

cable (10 m)

97958804

CE08-15

cable (15 m)

Product code

Accessories for PL101 - Reading Heads & SL7xx - Series

97977504

SZ16

Wiper (PL100/101 - Series)

97977503

SZ17

Spacer Kit for PL100/101 - Series

97977501

SZ18

Mount. Plate for PL100/101-N,R - Series

97977505

SZ19

Mount. Plate for PL101/101-RH - Series
