MJ

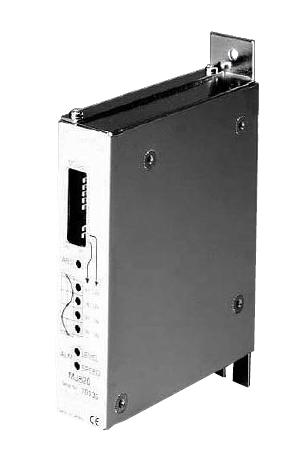

MJ820/821 Series

Data sheet

Drawing

Manual MJ820/821

Manual MJ820/821 Supplement

Manual MJ800 Series Supplement

- Discontinued -

Number of divisions:

40 - 4.000

Communication protocol:

Dedicated Fanuc serial interface protocol (Fanuc CNCi)

Discontinued:

- March 2014 -

Advice:



Digiruler

Reading Head

Cable

Interpolator

Output signal

PL101 CE08
SL700 MJ820/821
CK-T

Product code

Type

Description

97977563

MZ6

Interface connector for MJ820/821

97924996

CK-T12

Extension cable (1 m)

97924997

CK-T13

Extension cable (3 m)

97924998

CK-T14

Extension cable (5 m)

97924999

CK-T15

Extension cable (10 m)

97930000

CK-T16

Extension cable (15 m)

97958805

CE08-1

Extension cable (1 m)

97958801

CE08-3

Extension cable (3 m)

97958802

CE08-5

Extension cable (5 m)

97958803

CE08-10

Extension cable (10 m)

97958804

CE08-15

Extension cable (15 m)

Fanuc CNCi
