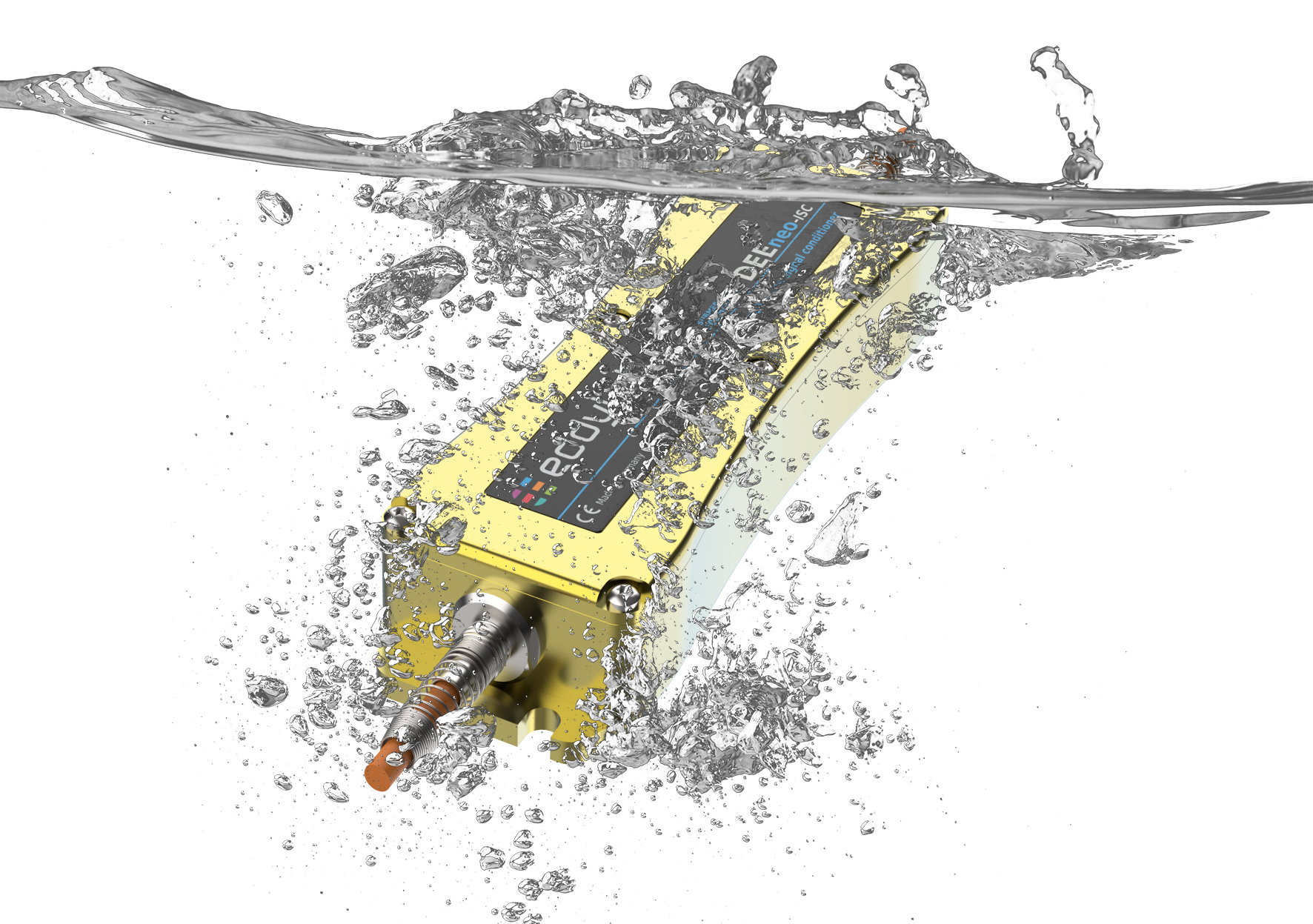

DEEneo-ISC-IP68 – Signal Conditioner with IP68 for Diving Depths up to 100 m

The electronics are built to IP68 protection class and are ideally suited for the reliable processing of LVDT sensor signals in moist, wet, or pressurized applications – whether underwater, outdoors, or in maritime environments.

DEEneo-ISC-IP68 is based on the new DEEneo signal conditioner series, which is specifically designed for operating inductive sensors based on the LVDT principle. The signal conditioner is integrated directly into the sensor cable, allowing for a particularly compact and flexible installation – without a control cabinet, right at the point of use.

Specially Sealed Aluminum Housing IP68 / 10 bar
To reliably protect the sensitive electronic components, eddylab developed a milled, anodized aluminum housing made of a seawater-resistant alloy. A surrounding O-ring between the upper and lower parts of the housing and a special cable entry ensure a permanently sealed connection – certified to IP68 for water depths up to 100 m (10 bar).

Digital Signal Processing for Maximum Precision
The integrated microcontroller enables linearization of the sensor signal, effectively compensating for any linearity deviations. The electronics support all standard LVDT inductive sensors and convert their signals into standardized analog output signals.

Quick Configuration – Directly on the Device or via Software
Basic configuration can be performed using a SET button on the device, for example to define the measurement range limits. For advanced settings, the eddySETUP software is available as a free download. It allows for detailed parameter configuration and activation of additional features such as the integrated cable break detection.

Robust System for Demanding Industrial Environments
"Especially in combination with the extremely durable inductive displacement sensors, this creates a consistently robust measurement system designed specifically for harsh industrial environments," explains Remo Kagerer, Head of Electronics Development at eddylab. "The high mechanical resilience of the sensors is perfectly complemented by the waterproof and pressure-resistant design of the DEEneo-ISC-IP68 – ensuring maximum reliability even under dirt, moisture, vibration, or temperature fluctuations."

The DEEneo-ISC-IP68 is available now. For further technical details and configuration information, please visit www.eddylab.com.
