eddyMOTION software

eddyMOTION is a powerful windows software used in conjunction with the TX-Driver. The targeted area of application is the visualisation and documentation of mechanical motion and the on-site linearisation of eddy current sensors.

Available as a Free download

eddyMOTION as analysis tool

eddyMOTION is made up as an universal analysis tool for the USB based data stream from the TX-Driver. The requirements in signal analysis can be of various nature - therefore eddyMOTION is structured in several modules. The different modules can be used to monitor fast and slow motion. The measured data can be displayed in the time- and in the frequency domain. The underlying sampling rates are 22.5 kSa/s in the two channel version and 38 kSa/s in the single channel version.

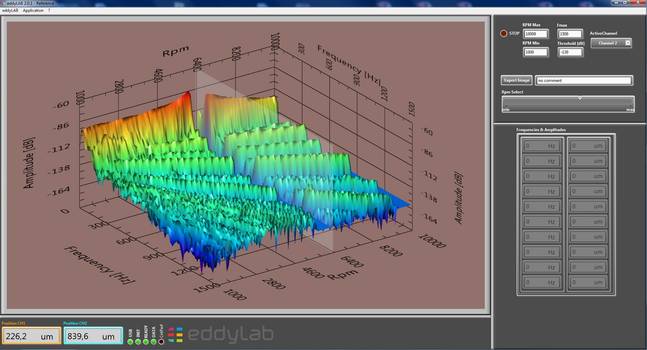

eddyMOTION offers an Oscilloscope function and further features as FFT analyser, Waterfall and Data logger. eddyMOTION also enables the on-site linearisation of eddy current sensors with an active feedback system.

Analysis module oscilloscope

Sampled data is displayed with basic measurements in the style of a classical oscilloscope

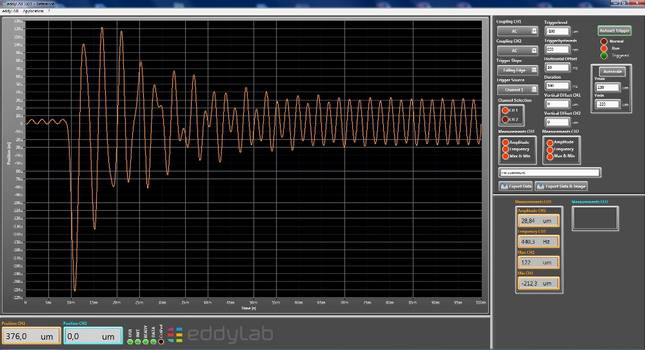

Triggering a tuning fork

single- and dual-channel oscilloscope. Samplingrates: 38 kSa/s (single); 22.5 kSa/s (dual)
AC/DC-coupling
variable time base 14ms...5sec
scaleable Y-axis & autoscale function
user-defined trigger level, hysteresis and pre-trigger, trigger source, falling and rising edge
essential measurements on dynamic data can be taken: amplitude, frequency, max & min values
data export as image (bmp) and text file

Analysis module FFT

Fast-Fourier transformation. Spectral analysis of mechanical motion. Analysis of fundamental oscillation and harmonics

Spectrum of a tuning fork

visualisation of the frequency spectrum up to 19kHz (single-channel); 11.25kHz (dual-channel)
threshold value for frequency detection can be selected
detection of frequencies and amplitudes
scalable frequency axis
data export as image (bmp) and text file
