Digital Magnetic Scales - Magnescale ®

Magnescale® (formerly SONY Precision Technology) scales consist ​​of a rigid profile with integrated magnetic tape on which a movable reading head is mounted. When shifting from registered magnetic pulses, this high precision sensor generates an incremental output signal which corresponds to the RS422 standard. These digital length measuring devices are ideal for mounting on multi-axis systems, such as lathes and milling machines, or robot systems.

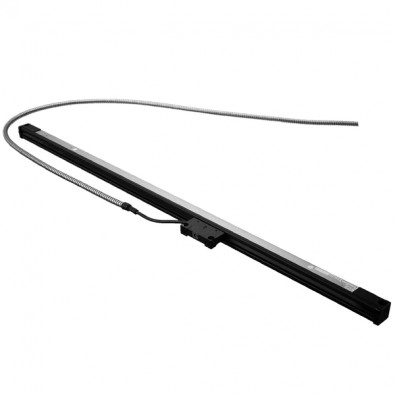

SJ-700A - Magnescale ®

Ranges

150 - 1600 mm

Linearity max.

±10 µm

Resolution

5 µm

Protection class

IP54

Output

A/B quadrature signal, Z signal

Download

SR-series Magnescale ®

Magnet Scales

SR-series (SR27A; SR67A, SR74, SR84)

Ranges

70-3640 mm

Linearity max.

3,21 µm

Resolution

0,01 µm

Protection class

IP54 / IP65

Output

BiSS

Download

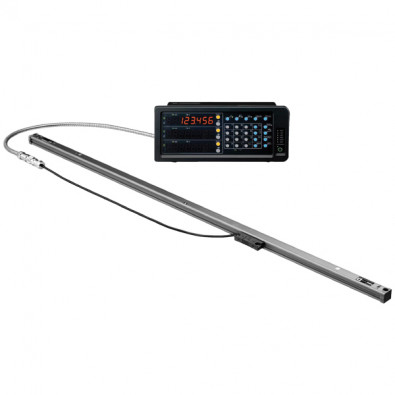

GB-ER - Magnescale ®

Ranges

50 - 2200 mm

Linearitäy max.

±5 µm

Resolution

0.5 µm

Protection class

IP54

Output

A/B quadrature signal, Z signal

Download
