Draw Wire Sensors

Draw Wire Sensors

The new draw wire sensors from eddylab GmbH have been completely revised and are designed to be particularly durable and robust. A significant innovation is achieved through the use of a contactless and wear-independent measuring element (Hall element) in conjunction with a microcontroller. The "Industrial Ethernet" output type can be quickly integrated into applications and offers Industry 4.0 compatibility. The housings are manufactured in fiber-reinforced plastic technology and provide high flexibility with regard to installation.

The sensors have an oil-damped spring motor, which enables particularly low-friction rope pull-off with minimal hysteresis.

Key Feautures

  •     Industry 4.0 compatibility
  •     Wear-free Hall element
  •     Measuring lengths 50...6000 mm
  •     Industrial Ethernet
  •     Power over Ethernet POE
  •     High dynamic and noise immunity
  •     Customized designs

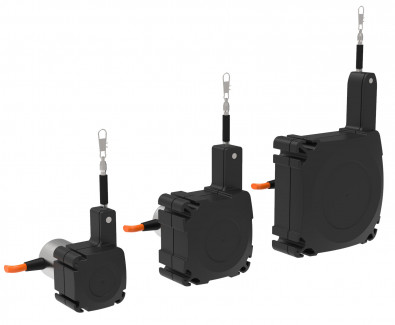

Draw Wire Sensors Series S5 S8 S12

Range

50...6000 mm

Linearity

0,01%

Resolution

0,005 %

Protection class

IP67 (optional IP68)

Sensor element

Hall element

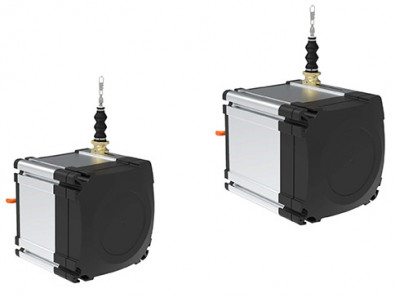

Draw Wire Sensors Series S635 S935

Range

10...60 m

Linearity

0,01 %

Resolution

0,005 %

Protection class

IP67 (optional IP68)

Sensor element

Hall element
