high-dynamic and
high-precision sensors

Digital Gauges - Magnescale ®

Magnescale® (formerly SONY Precision Technology) gauges are high-precision sensors which, through their unique magnetic measuring principle, permanently achieve a resolving power of up to 0.1 microns and an accuracy of up to 1 micron, even under difficult conditions. The newly developed shaft keyway bearing of the DK800S series guarantees a lifespan of more than 130 million strokes. With their RS422 compatible output signal, digital gauges are the ideal sensors for automated manufacturing.

Further information is available in the service/Magnescaleservice section.

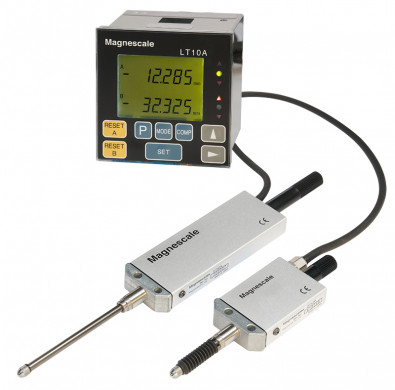

DT12, DT512, DT32 series - Magnescale ®

Ranges

12 mm, 32 mm

Resolution max.

1 µm

Linearity max.

±3 µm

Pneumatic version

yes

Output signal

TTL linedriver compliant with EIA-422, with MT

Voltage rating

+5 VDC ±5 %, 9-26.4 VDC

Protection class max.

IP64

Download

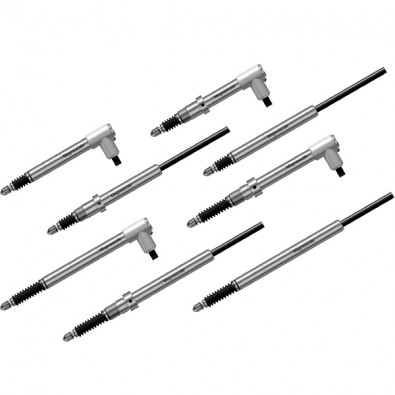

DK800S Series - Magnescale ®

Ranges

5 mm, 12 mm, 30 mm

Resolution max.

0.1 µm

Linearity max.

±0.5 µm

Pneumatic version

yes

Output signal

TTL Linedriver compliment with EAI-422

Voltage rating

+5 VDC ±5 %

Protection class max.

IP67

Reference point

yes

Download

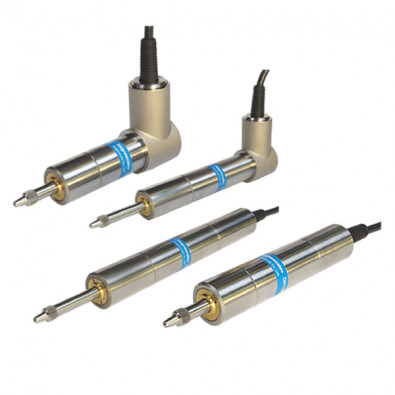

DK10/25/50/100/155/205 - Magnescale ®

Ranges

10, 25, 50, 100, 155, 205 mm

Resolution max.

0.5 µm

Linearity max.

±2 µm

Pneumatic version

yes

Output signal

TTL Linedriver compliant with EAI-422

Voltage rating

+5 VDC ±5 %

Protection class max.

IP64

Reference point

yes

Download

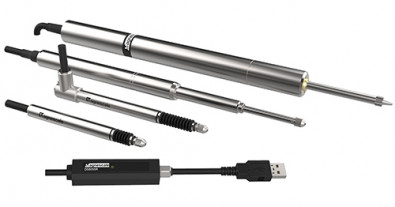

DS series - Magnescale ®

Ranges

5 - 100 mm

Resolution up to

0,1 µm

Accuracy up to

1 µm

Spring loaded and pneumatic versions

yes

Protection class up to

IP67

Output

USB (2.0FS) interface - free evaluation software for download

Download

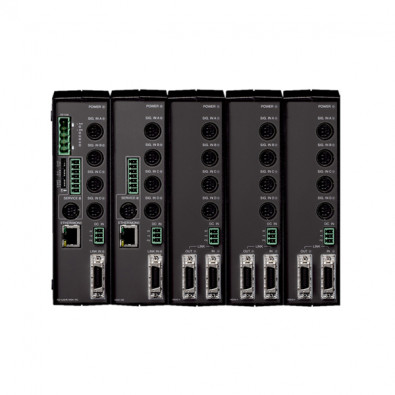

MG-40 series Multi point measuring device - Magnescale ®

Ranges

up to 100 digital gauges

Setup

modular structure

Output

Ethernet

Transfer rate

up to 100 Mbit/sec

Supply

11-26.4 VDC

Download

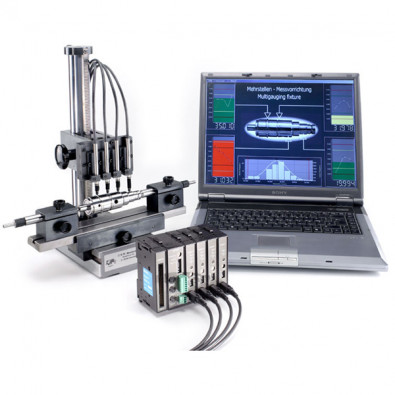

MG-10A/20A/30 Multi point measuring device - Magnescale ®

Ranges

up to 64 digital gauges

Setup

modular structure

Output

EIA-232C, BCD

Transfer rate

max. 38400 bps

Supply

Download

MG80 Multi point measuring device with Ethernet / Ethernet IP /Profinet

Compatible measuring units

digital gauges of DK an DT series

Setup

modular structure

Interface

Data is directly transferred to PC via Ethernet, Ethernet IP or Profinet

Supply

10,8 V to 26,4 V DC

Download

MG80-MA Multi point measuring device with LT80-Display

Ranges

up to 32 digital gauges of DK an DT series

Setup

modular structure

Display

7-inch touch screen LCD display (1024x600)

Interface

Data storing and Parameter writing in SD card/USB memory / Data is transferred to PC via Ethernet, Ethernet IP or Profinet

Supply

10,8 V to 26,4 V DC

Download

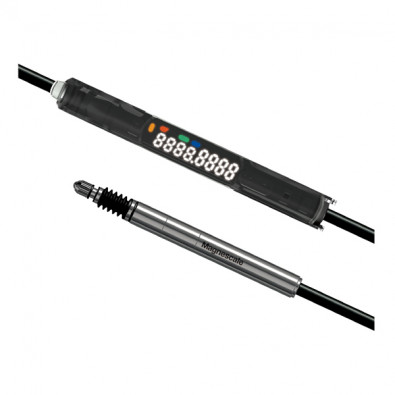

Series DF800S + MF10 - Magnescale ®

Ranges

PNP/NPN

Setup

modular structure

Output

Go/NoGo

Supply

24 VDC

Download

MeasureViewer | USB Digital Gauge Measurement Software ®Magnescale

Measurement value

Analog meter display, Vertical bar graph display, Numerical display,

Measurement mode

Current value, maximum, minimum and P-P value

Current Display

GO/NG results for current value ((red, yellow and green)

Data output

CSV data output (time stamp, measurement values, GO/NG results)

Download
