Digital Rulers - Magnescale ®

Digital magnetic tape measurement systems by Magnescale (formerly SONY Precision Technology) consist of a linear magnetic material and a reading head, which is fed without contact over the magnetic tape. This measuring principle is permanently wear-free, very robust and enables the highest resolutions up to 0.2 microns.

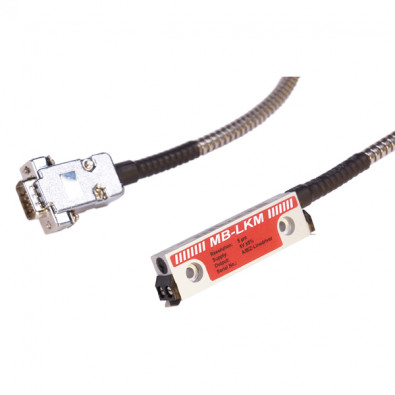

MB-LK, MB-LKM ®

Digital ruler

MB-XXX-2-ST

Ranges

200 mm - 50 m

Linearity max.

5 µm

Displacement speed

120 m/min

Output

TTL Linedriver (RS422), A/A*, B/B*, Z

Voltage rating

+5 VDC ±5 %

Protection class

IP67

Referenz point

yes

Connection to

Display, Counter

Download

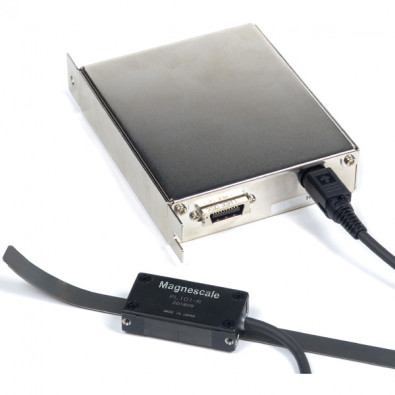

PL101 - Magnescale ®

Digital ruler

SL700 Series

Ranges

50 mm - 100 m

Linearity max.

0.2 µm

Displacement speed

6.4 m/s, 24 m/s

Output

1 Vss, Sin, Cos, TTL Linedriver (RS422), A/A*, B/B*, Z

Power supply

+5 VDC ±5 %

Protection class

IP50 - IP67

Referenz point

without, one, multiref.

Connection to

interpolator

Download

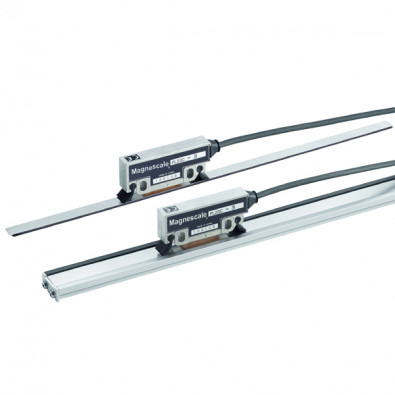

PL20C - Magnescale ®

Digital ruler

SL110, SL130

Ranges

Profile 200 - 2000 mm, tape 200 - 30000 mm

Linearity max.

10 µm

Displacement speed

300 m/min

Output

TTL Linedriver (RS422), A/A*, B/B*

Voltage rating

+5 VDC ±5 %

Protection class

IP65

Connection to

Display, interpolator

Download

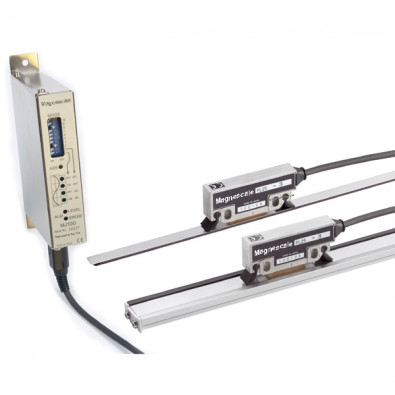

PL25 with MJ100/110 Interpolator - Magnescale ®

Digital ruler

SL110, SL130

Ranges

Profile 200 - 2000 mm, tape 200 - 30000 mm

Linearity max.

5, 10, 25, 50, 125 µm, adjustable

Displacement speed

300 m/min

Output

TTL Linedriver (RS422), HTL, A/A*, B/B*

Power supply

+5 VDC ±5 %

Protection class

IP67

Referenz point

optional with SETP16 extern

Connetion to

interpolator

Download

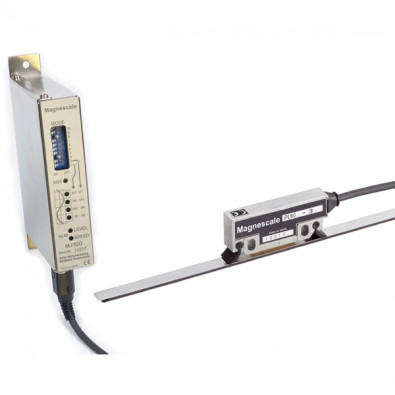

PL60 with MJ100/110 Interpolator - Magnescale ®

Digital ruler

SL331

Ranges

200 - 8000 mm

Linearity max.

5, 10 µm, adjustable

Displacement speed

250 m/min

Output

TTL Linedriver (RS422), HTL, A/A*, B/B*

Power supply

+5 VDC ±5 %

Protection class

IP65

Referenz point

optional with SETP16 external

Connection to

Download

  • Data sheet (on request)
  • CAD-data (on request)

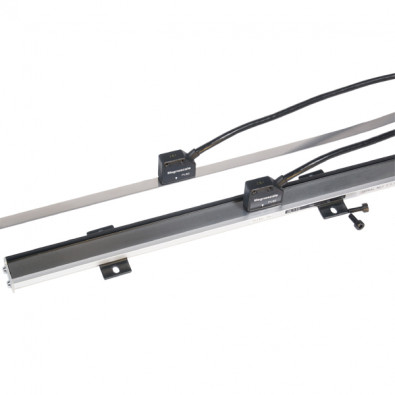

PL81, PL82 - Magnescale ®

Digital ruler

SL110, SL130

Ranges

Profile 200 - 2000 mm, tape 200 - 30000 mm

Linearity max.

10, 20, 25, 50, 100 µm, adjustable

Displacement speed

300 m/min

Output

TTL Linedriver (RS422), HTL open collector

Voltage rating

+5 VDC ±5 %, 10...30 VDC

Protection class

IP67

Connetion to

Counter

Download
