high-dynamic and
high-precision sensors

Eddy Current Probes

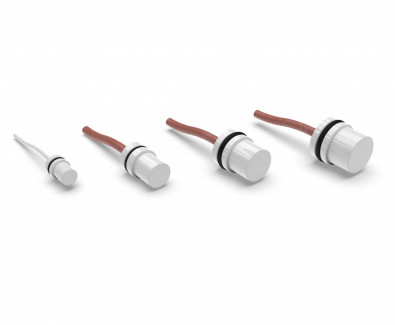

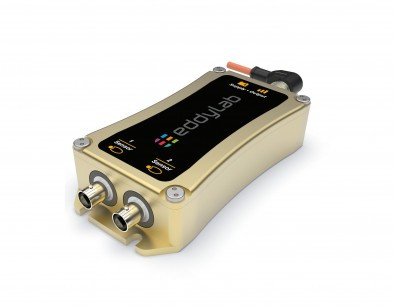

Eddy current sensors detect the distance or the change to metal objects without contact, dynamically and extremely accurately. The TX electronics which are specially adapted to the respective sensor calculate an analogue output signal proportional to the distance. In addition, there is a USB and CAN interface for reading the data. The eddylab software developed by WayCon is the perfect complement to the TX series with its 3 functional areas (oscilloscope, FFT analysis, data logger). For more information see also http://www.eddycurrentprobe.com.

TX Series, high precision measurement

Range

0.5 - 10 mm

Linearity max.

±0.15 %

Resolution

0.03 µm

Dynamic

124 kS/s

Protection class max.

IP68

Operating temperature

up to +185 °C

Output

0...10 V, 0...5 V, ±5 V, 0...20 mA, 4...20 mA, USB, CAN

Download

eddylab software

The powerful windows software is available in three different versions: Lite, Standard and Reference. eddylab is used in conjunction with the TX-Driver, an eddy current sensor and a digital gauge for calibration.

eddylab Lite is delivered with every eddy current sensor.

An overview of the eddylab versions and their respective functionality is given in the next table.

eddylab Manual
CAN-Bus

Further information can be found in the datasheet of the TX-System.

TX Series, high precision measurement

Range

0.5 - 10 mm

Linearity max.

±0.15 %

Resolution

0.03 µm

Dynamic

124 kS/s

Protection class max.

IP68

Operating temperature

up to +185 °C

Output

0...10 V, 0...5 V, ±5 V, 0...20 mA, 4...20 mA, USB, CAN

Download

eddylab software

The powerful windows software is available in three different versions: Lite, Standard and Reference. eddylab is used in conjunction with the TX-Driver, an eddy current sensor and a digital gauge for calibration.

eddylab Lite is delivered with every eddy current sensor.

An overview of the eddylab versions and their respective functionality is given in the next table.

eddylab Manual
CAN-Bus

Further information can be found in the datasheet of the TX-System.

TX Series, high precision measurement

Range

0.5 - 10 mm

Linearity max.

±0.15 %

Resolution

0.03 µm

Dynamic

124 kS/s

Protection class max.

IP68

Operating temperature

up to +185 °C

Output

0...10 V, 0...5 V, ±5 V, 0...20 mA, 4...20 mA, USB, CAN

Download

eddylab software

The powerful windows software is available in three different versions: Lite, Standard and Reference. eddylab is used in conjunction with the TX-Driver, an eddy current sensor and a digital gauge for calibration.

eddylab Lite is delivered with every eddy current sensor.

An overview of the eddylab versions and their respective functionality is given in the next table.

eddylab Manual
CAN-Bus

Further information can be found in the datasheet of the TX-System.
